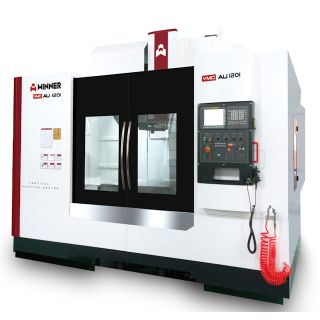

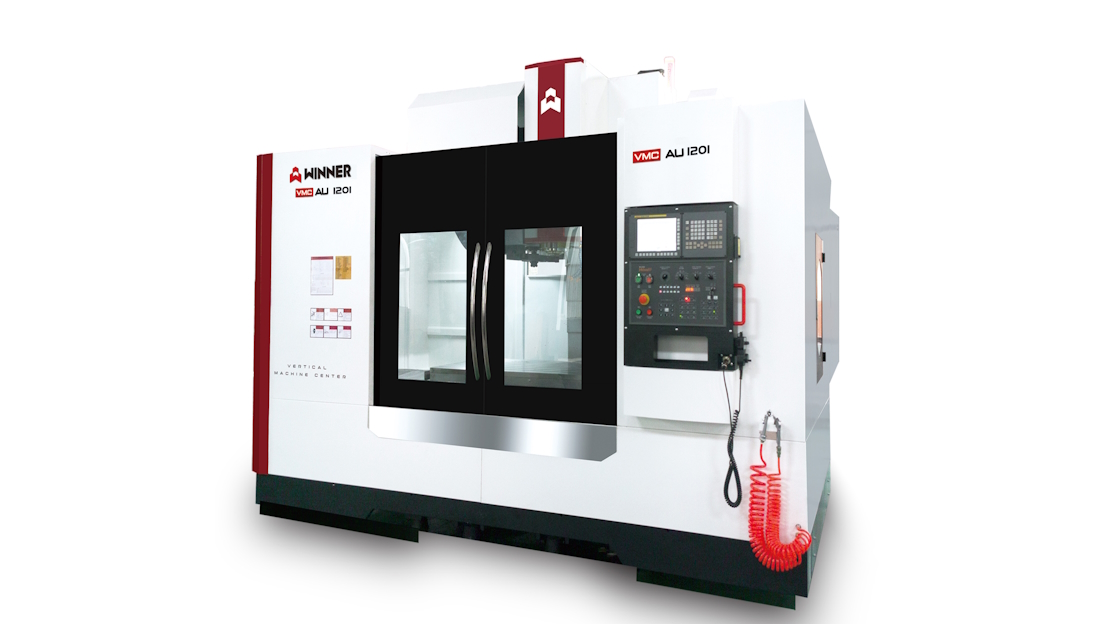

U2 SERIES High Rigidity & Productivity Vertical Machining Center

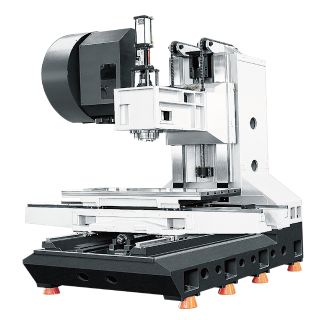

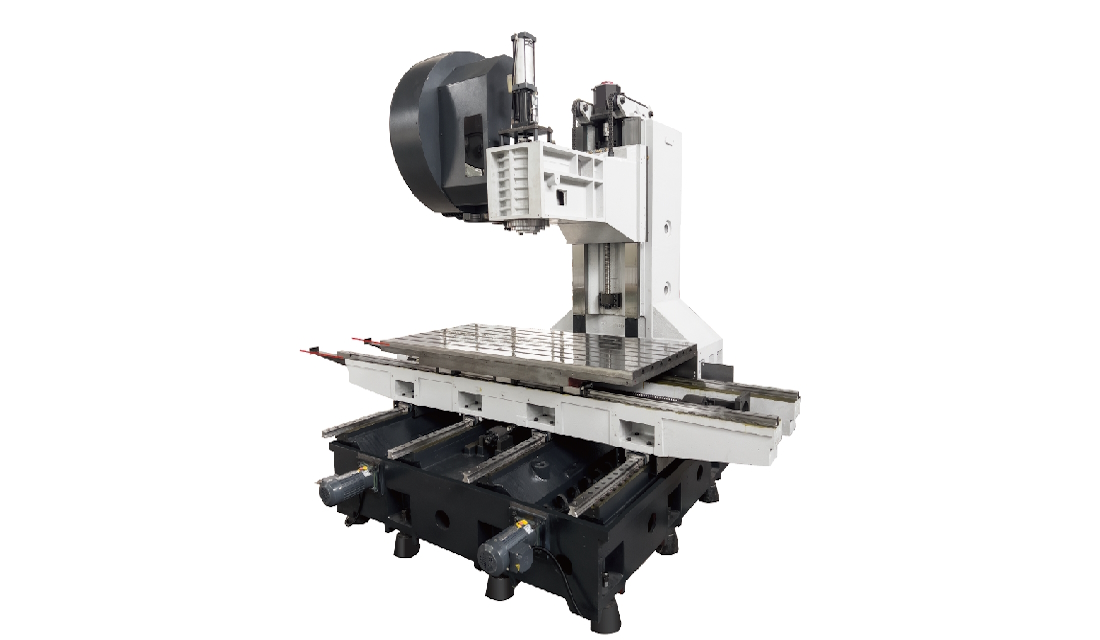

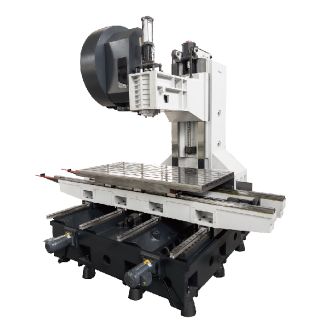

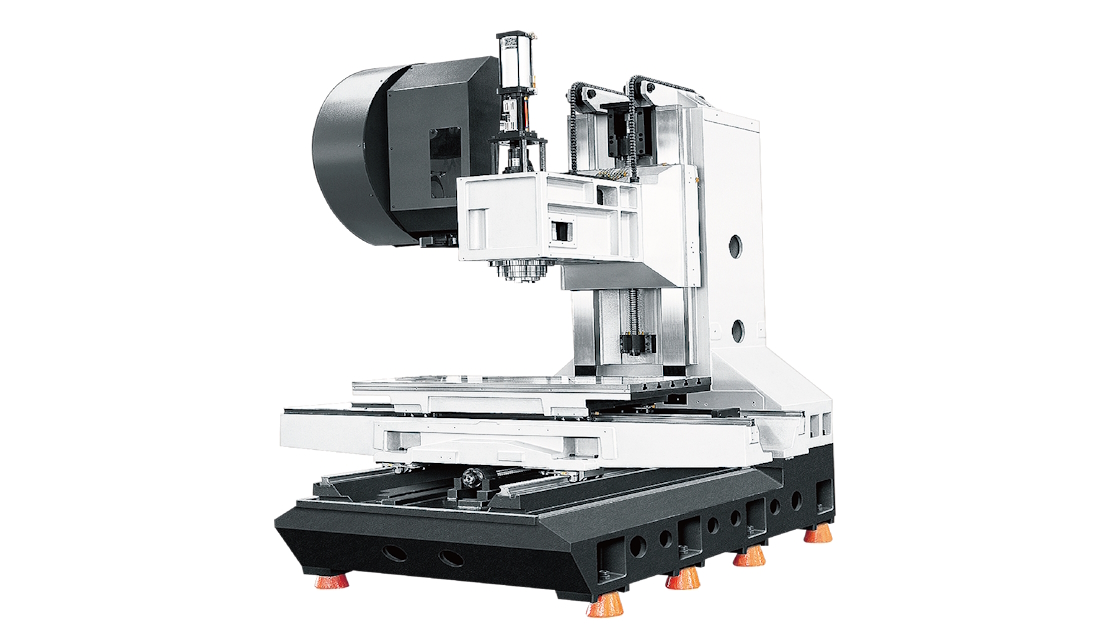

Utilizing high-precision ball screws enables achieving higher machining accuracy. The double-nut design of the screw, with fixed pre-tensioning at both ends, ensures smooth operation. Centralized lubrication enhances longevity and stability in accuracy. The Y-axis features a four-hard-rail design, providing strong rigidity and stability with a large span and precise shaving treatment on the contact surface. The spacious machining area facilitates convenient loading and unloading of workpieces for customers. The high-rigidity short-nose spindle design, with optional BT50 diameters of Φ155/190mm, enhances cutting force and ensures machining accuracy.

Specifications	VMC-A/EU1001	VMC- A/EU1200	VMC-A/E/LU1201	VMC-A/EU1400	VMC-A/E/LU1401	VMC-A/EU1400L	VMC-A/EU1401L	VMC-A/EU1600	VMC-A/EU1601
X Travel	1000 mm	1200 mm	1200 mm	1400 mm	1400 mm	1400 mm	1400 mm	1600 mm	1600 mm
Y Travel	600 mm	650 mm	650 mm	700 mm	700 mm	800 mm	800 mm	800 mm	800 mm
Z Travel	600 mm	650 mm	650 mm	680 mm	680 mm	700 mm	700 mm	700 mm	700 mm
Spindle Nose to Table Surface	100 - 700 mm	180 - 830 mm	180 - 830 mm	160 - 840 mm	160 - 840 mm	AU：160-860 mm　　　　　　　  EU：130-830 mm	AU：160-860 mm　　　　　　　  EU：130-830 mm	AU：160-860 mm　　　　　　　　  EU：130-830 mm	AU：160-860 mm　　　　　　　　　　　　　  EU：130-830 mm
Spindle Center to Column	AU：660 mm  EU：640 mm	AU：725 mm  EU：700 mm	AU：775 mm  EU：750 mm	AU：725 mm  EU：700 mm	AU：775 mm  EU：750 mm	AU：895 mm  EU：850 mm	AU：895 mm  EU：850 mm	AU：895 mm  EU：850 mm	AU：895 mm  EU：850 mm
Table Size	1150mm×600mm	1300mm×650mm	1300mm×650mm	1500mmx710ｍｍ	AU/EU:1500mm×710mm LU:1500mm×700mm	1500mm×810mm	1500mm×810mm	1700mm×810mm	1700mm×810mm
T-slots	5	5	5	7	7	7	7	7	7
T-slot Distance	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm
T-slot Width	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
Table Loading Capacity	800 kg	1000 kg	AU/EU：1000 kg    LU：1200 kg	1200 kg	1200 kg	1200 kg	1200 kg	1400 kg	1400 kg
Spindle Transmission	Belted	Belted	Belted	Belted	Belted	Belted	Belted	Belted	Belted
Spindel Speed	60 - 8000  rpm	60 - 10000 rpm	60 - 6000  rpm	60 - 10000  rpm	60 - 6000  rpm	60 - 10000  rpm	60 - 6000  rpm	60 - 10000  rpm	60 - 6000  rpm
Spindle Taper	BBT-50 (AU:Φ155/EU:Φ160)	BT-40	BBT-50（Φ190）	BT-40	BBT-50（Φ190）	BBT-40	BBT-50（Φ190）	BBT-40	BBT-50（Φ190）
Axes Rapid Feed Rate	AU:36×36×36m/min    EU:36×36×18 m/min	AU:24×24×24m/min  EU:24×24×18m/min	AU:24×24×24m/min EU:24×24×18m/min  LU:18×18×18m/min	AU:24×24×24m/min  EU:24×24×18m/min	AU:24×24×24m/min  EU:24×24×18m/min  LU:18×18×18m/min	AU:24×24×20m/min  EU:24×24×18m/min	AU:24×24×20m/min  EU:24×24×18m/min	AU:24×24×20m/min  EU:24×24×18m/min	AU:24×24×20m/min  EU:24×24×18m/min
Max. Cutting Feed Rate	10000  mm/min	10000  mm/min	10000  mm/min	10000  mm/min	10000  mm/min	10000  mm/min	10000  mm/min	10000  mm/min	10000  mm/min
ATC Magazine	Arm Type	Arm Type	Arm Type	Arm Type	Arm Type	Arm Type	Arm Type	Arm Type	Arm Type
Tool Capacity	24 T	24 T	24 T	24 T	24 T	24 T	24 T	24 T	24 T
Floor Occupation	2890 × 2880 mm	3270 × 3440 mm	3270 × 3440 mm	3270 × 3440 mm	3270 × 3440 mm	3350 × 3840 mm	3350  × 3840 mm	3350  × 3840 mm	3350  × 3840 mm
