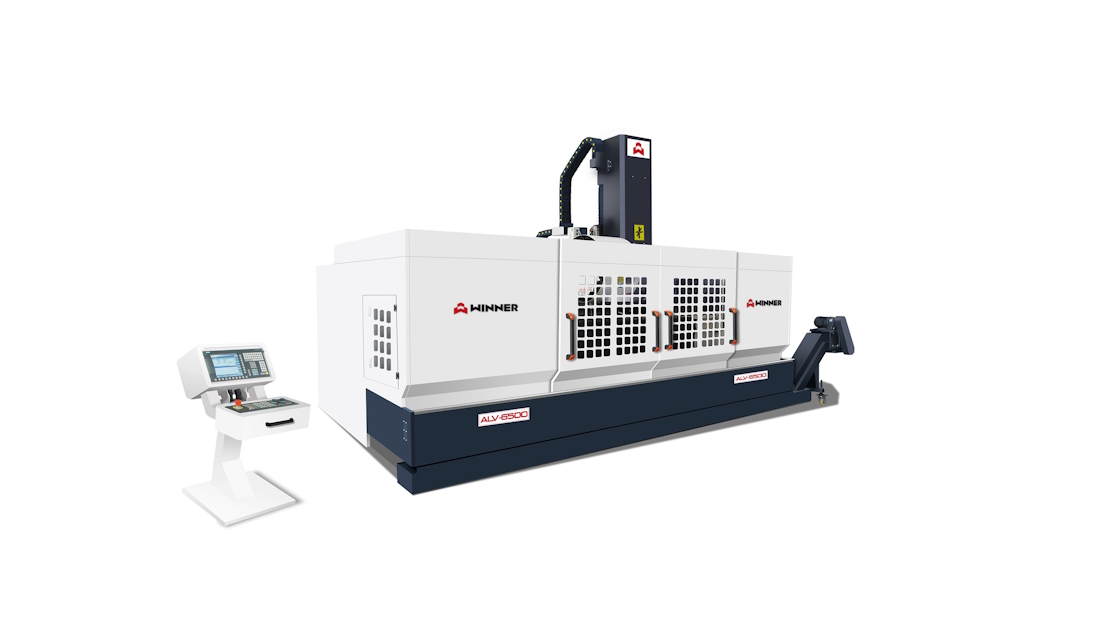

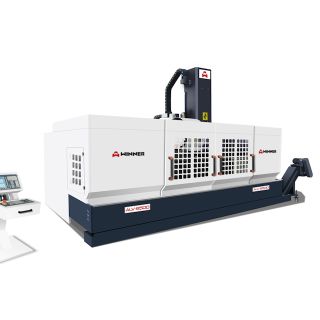

Profile Processing Machining Center

Machine tool characteristics: This machine is an automated composite machining center that integrates milling, turning, drilling, tapping, and chamfering, suitable for processing various lengths of metal profiles such as steel, copper, and aluminum.
．Equipped with an automatic chip conveyor, the moving column adopts dual motor drive, and the spindle outer diameter is Φ150mm, increasing the rigidity of the machine.
．Added a fully enclosed protective cover for the machine to ensure operator safety and environmental hygiene.
．Utilizes a rapid synchronous tool changer, allowing for advanced tool preparation, with a tool change time of only 2.5 seconds.
．The entire machine is cast in one piece, suitable for high-precision machining, with strong stability.

Specifications	ALV-2000	ALV-3000	ALV-4000
X Travel	2000 mm	3000 mm	4000 mm
Y Travel	400 mm	400 mm	400 mm
Z Travel	400 mm	400 mm	400 mm
Spindle Nose to Table Surface	120 - 520 mm	120 - 520 mm	120 - 520 mm
Spindle Center to Column	545 mm	545 mm	545 mm
Table Size	2300 mm × 500 mm	3300 mm × 500 mm	4300 mm × 500 mm
T-slots	5	5	5
T-slot Distance	100 mm	100 mm	100 mm
T-slot Width	18 mm	18 mm	18 mm
Table Loading Capacity	3000 kg	5000 kg	5000 kg
Spindle Transmission	Belted	Belted	Belted
Spindel Speed	60 - 10000  rpm	60 - 10000  rpm	60 - 10000  rpm
Spindle Taper	BT-40	BT-40	BT-40
Axes Rapid Feed Rate	24 × 24 × 24  m/min	18 × 24 × 24  m/min	18 × 24 × 24  m/min
Max. Cutting Feed Rate	10000  mm/min	10000  mm/min	10000  mm/min
ATC Magazine	Turret Type	Turret Type	Turret Type
Tool Capacity	12 T	12 T	12 T
Floor Occupation	4500 mm × 3810 mm	5500 mm × 3810 mm	6500 mm × 3810 mm
