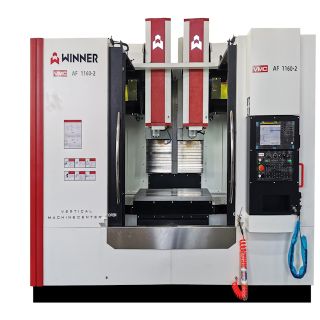

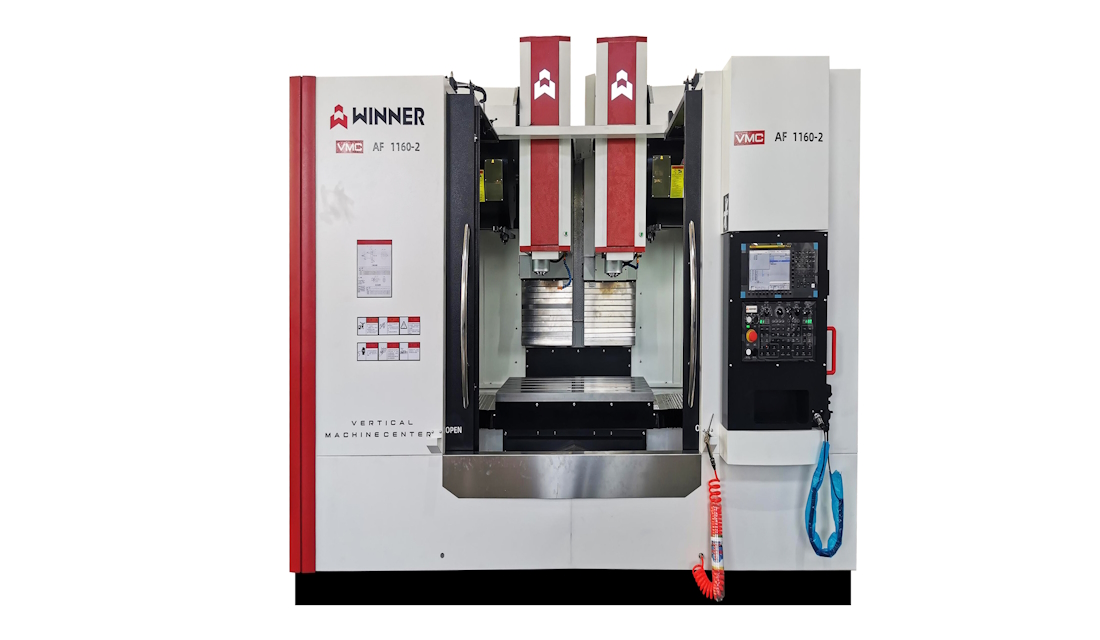

Twin Spindle & Twin Magazines Vertical Machining Center
ID：AF-2 SERIES

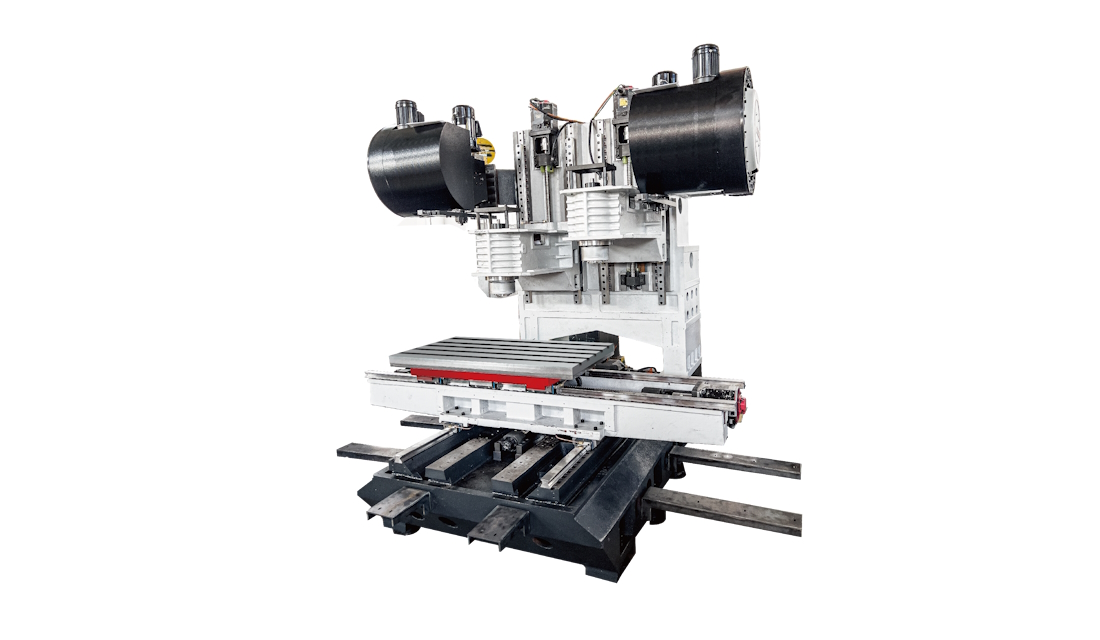

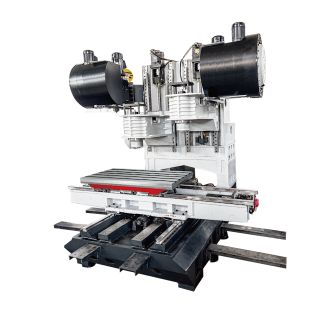

The dual spindle design of our machining center allows simultaneous processing of two workpieces within the same work cycle, greatly enhancing production efficiency. By performing multiple machining operations such as milling and drilling simultaneously, you can achieve rapid and efficient production.
Our dual spindle machining center is equipped with advanced control systems and precision tools, ensuring high-precision machining results. Through precise tool position control and coordinated spindle movements, we can achieve fine machining and high-quality finished products.
Our dual spindle machining center is equipped with advanced control systems and precision tools, ensuring high-precision machining results. Through precise tool position control and coordinated spindle movements, we can achieve fine machining and high-quality finished products.
Machine tool characteristics
．Efficient Production: The dual spindle design of our machining center allows simultaneous processing of two workpieces within the same work cycle, greatly enhancing production efficiency. By performing multiple machining operations such as milling and drilling simultaneously, you can achieve rapid and efficient production.
．Multifunctional Machining: The dual spindle machining center features multifunctional machining capabilities, able to perform symmetrical machining operations simultaneously. Whether it's processing multiple operations on the same workpiece or machining two workpieces simultaneously, our equipment can meet your diverse machining needs.
．High Precision Machining: Our dual spindle machining center is equipped with advanced control systems and precision tools, ensuring high-precision machining results. Through precise tool position control and coordinated spindle movements, we can achieve fine machining and high-quality finished products.
．Efficient Production: The dual spindle design of our machining center allows simultaneous processing of two workpieces within the same work cycle, greatly enhancing production efficiency. By performing multiple machining operations such as milling and drilling simultaneously, you can achieve rapid and efficient production.
．Multifunctional Machining: The dual spindle machining center features multifunctional machining capabilities, able to perform symmetrical machining operations simultaneously. Whether it's processing multiple operations on the same workpiece or machining two workpieces simultaneously, our equipment can meet your diverse machining needs.
．High Precision Machining: Our dual spindle machining center is equipped with advanced control systems and precision tools, ensuring high-precision machining results. Through precise tool position control and coordinated spindle movements, we can achieve fine machining and high-quality finished products.
| Specifications | AF1160-2 | AF1270-2 |
| X Travel | 1100 mm | 1200mm |
| Y Travel | 600 mm | 700 mm |
| Z Travel | 600 mm | 700 mm |
| Spindle Nose to Table Surface | 120 - 720 mm | 150 - 800 mm |
| Spindle Center to Column | 660 mm | 750 mm |
| Table Size | 1200 mm × 600 mm | 1300 mm × 700 mm |
| T-slots | 5 | 5 |
| T-slot Distance | 100 mm | 100 mm |
| T-slot Width | 18 mm | 18 mm |
| Table Loading Capacity | 1000 kg | 1200 kg |
| Spindle Transmission | Belted(o.p. Direct Connect) | Belted(o.p. Direct Connect) |
| Spindel Speed | 60 - 12000 rpm | 60 - 10000 rpm |
| Spindle Taper | BT-40 | BT-40 (o.p.BT-50) |
| Axes Rapid Feed Rate | 30 × 30 × 30 x 30 m/min | 30 × 30 × 30 x 30 m/min |
| Max. Cutting Feed Rate | 10000 mm/min | 10000 mm/min |
| ATC Magazine | Arm Type | Arm Type |
| Tool Capacity | 24 T x 2 | 24 T x 2 |
| Floor Occupation | 2880 mm × 3240 mm | 2880 mm × 3240 mm |
